Oil And Gas Asphalt Burner

Mobile Phone

Application: Aggregate heating in asphalt mixing plant and thermal insulation of asphalt mixture.fuel oil, gas, pulverized coal.
Fuel capacity：600-3000 kg/h
Gas capacity：700-4000 Nm³/h

Customized Oil And Gas Asphalt Burner
The design layout of the concrete batching plant will be customized and constructed according to your project volume and equipment needs. Let's expect all the miracles to happen.

Inquire Now To Get The Latest Quotation!

Get A Free Quote Send Inquiry Now!

Product Description
Technical Parameter
Advantages
Equipment Photo
Related Cases
Related Products

Product Description

Burners are also called burners, which can be divided into oil burners, gas burners and biomass burners according to the fuel.Yalong Machinery operates gas burners, light oil burners, heavy oil burners, oil and gas dual-purpose burners (diesel/light oil or gasoline, heavy oil or gasoline)

: gas burner

: coal burner

: oil gas burner

Technical Parameter

PLANT MODEL	MAX. FUEL CAPACITY	MAX.GAS CAPACITY	MAX.OUTPUT POWER	BLOWER	OIL PUMP	PIPE SIZE	AIR CONSUMPTION
YL1000YQ	600kg/h	700Nm³/h	7MW	11kW	1.5kW	DN80mm	3m³/min
YL1500YQ	900kg/h	1100Nm³/h	10.5MW	11kW	2.2kW	DN100mm	4m³/min
YL2000YQ	1200kg/h	1500Nm³/h	14MW	15kW	2.2kW	DN100mm	5m³/min
YL3000YQ	1800kg/h	2100Nm³/h	21MW	22kW	2.2kW	DN100mm	6m³/min
YL4000YQ	2400kg/h	3000Nm³/h	28MW	30kW	3kW	DN125mm	7m³/min
YL5000YQ	3000kg/h	4000Nm³/h	35MW	37kW	4kW	DN125mm	8m³/min

Advantages

There are gas burners, oil burners, oil and gas burners, coal burners.

As a kind of mechatronics equipment with a high degree of automation, the burner of the asphalt mixing plant can be divided into five systems: gas supply system, ignition system, monitoring system, fuel system and electrical control system. The function of the air supply system is to send air with a certain wind speed and air volume into the combustion chamber. Its main components are: shell, fan motor, fan impeller, air gun fire pipe, damper controller, damper baffle and diffuser plate.

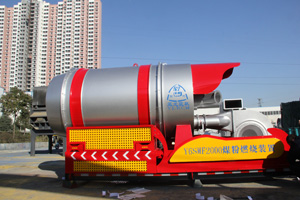

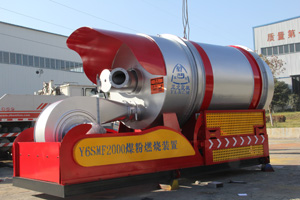

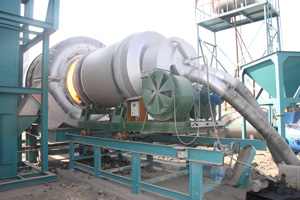

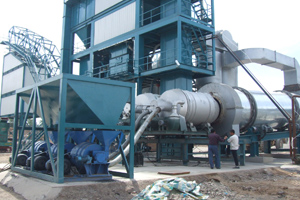

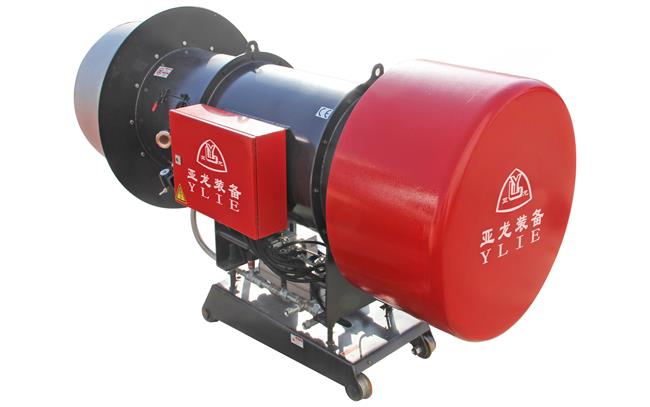

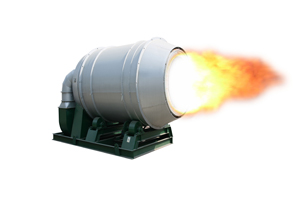

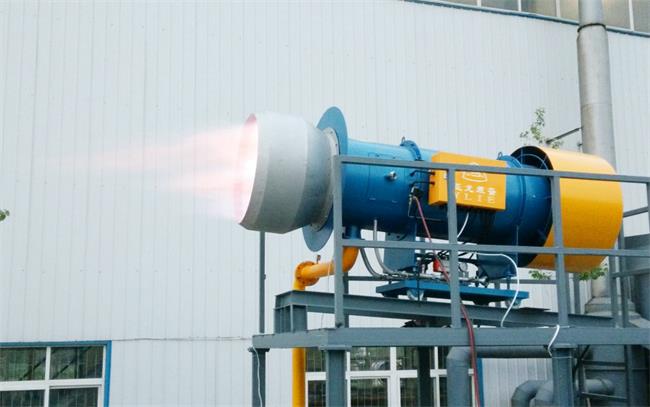

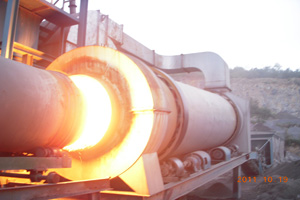

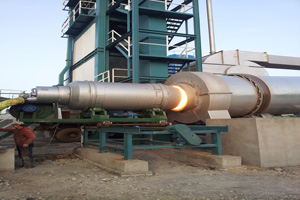

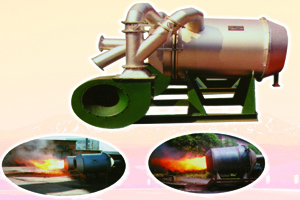

Equipment Photo
