Power form: diesel
Rated load(T): 2T/3T/4T/5T/7T/8T/10T/12T/16T/25T
H1 maximum lifting height: 4M

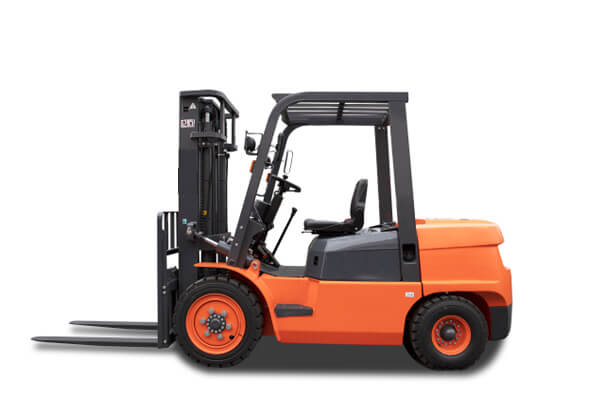

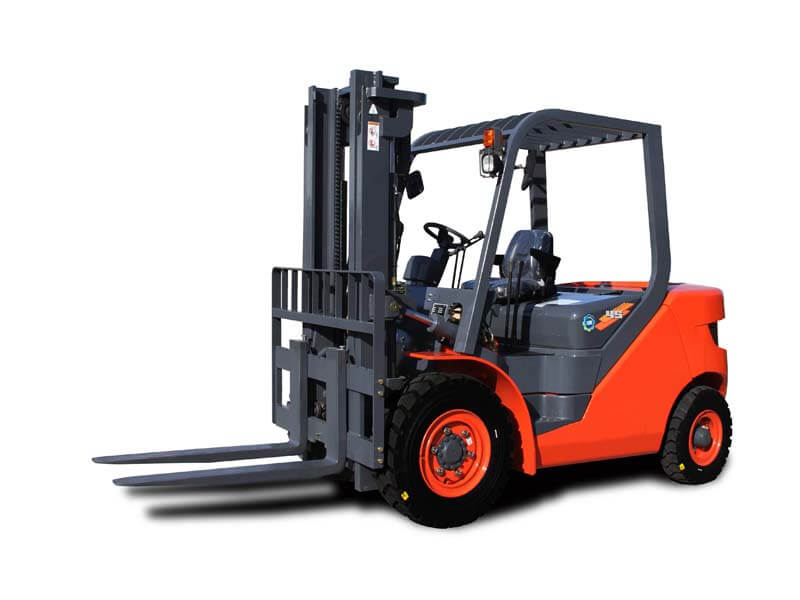

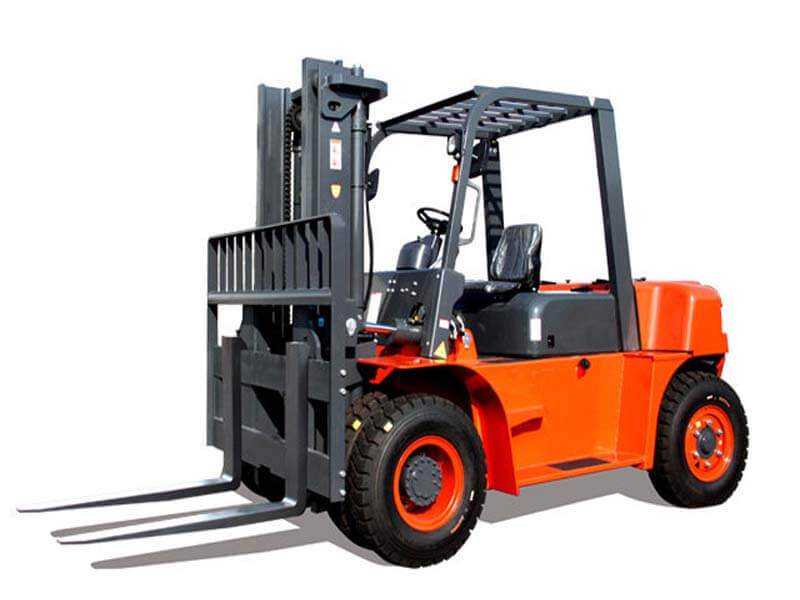

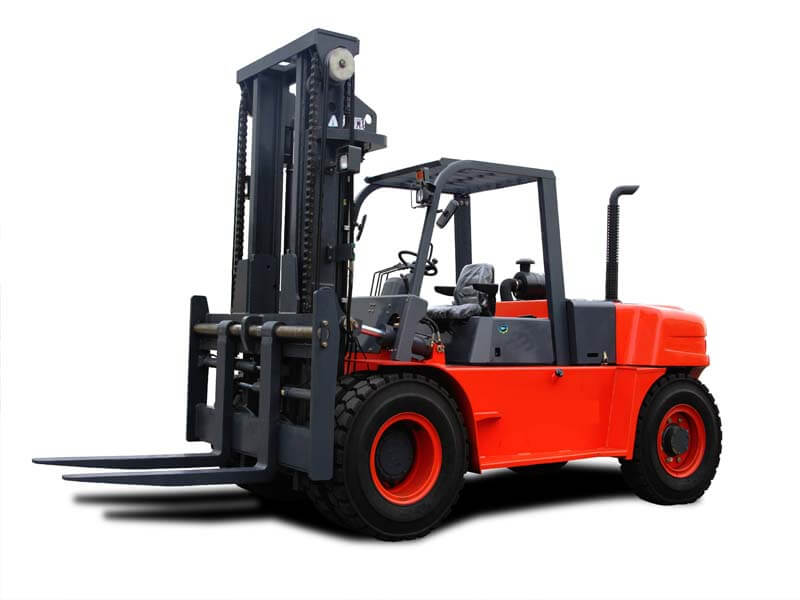

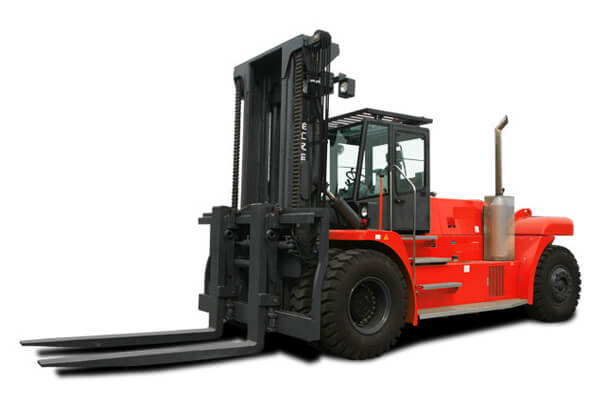

Internal Combustion Forklift Manufacturers - Get the Best Prices
Product Introduction

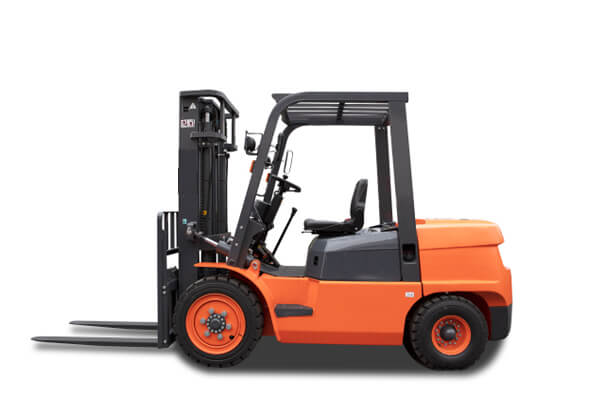

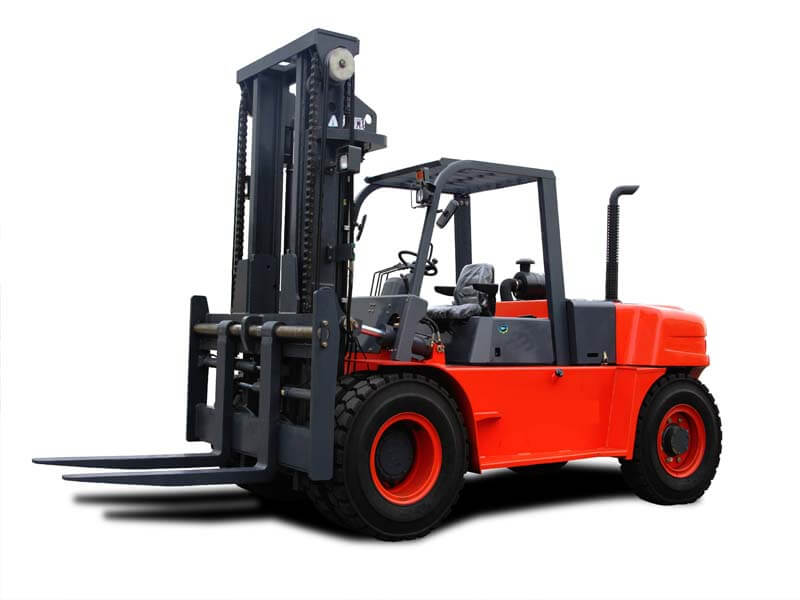

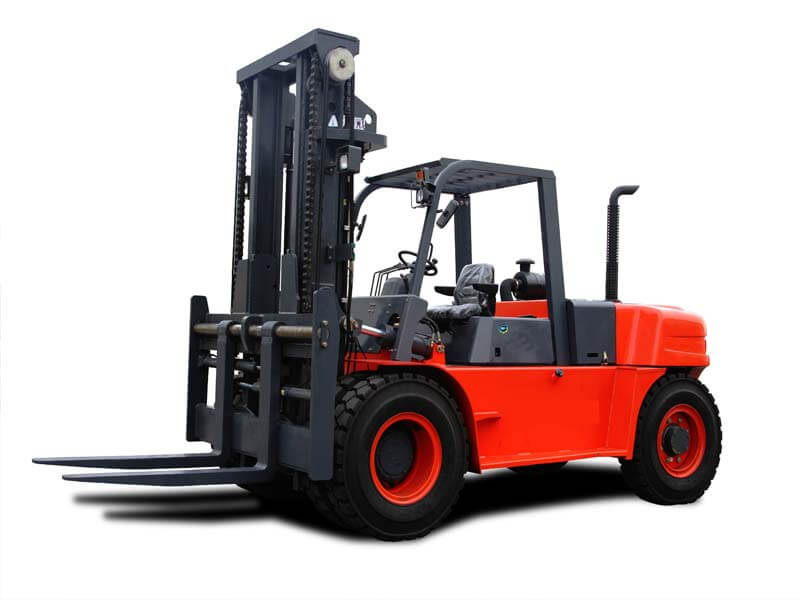

Diesel Forklift Supplier-Low Price
1. Using ergonomics and CAE technology, the operating space is enlarged, the driver is more comfortable, and the operating efficiency and safety are effectively improved
2. Adopt Weichai high-pressure common rail engine (standard configuration), Bosch high-pressure multiple injection technology, power performance is significantly improved, and smoke emission is lower
3. Progressive pointer instrument has water temperature gauge, oil level gauge, chronograph and other alarm indicators, which are direct and clear, so that the working conditions are under control
4. The opening angle of the hood is increased to 80°, making maintenance more convenient
Technical Parameters
| Model | Unit | CPC(D)30-ER07 | CPC(D)35-ER07 | CPC(D)38-ER07 | |
| Power Form | diesel fuel | ||||
| Rated load | kg | 3000 | 3500 | 3800 | |
| load center distance | mm | 500 | 500 | 500 | |
| Max. Lifting Height | mm | 3000 | 3000 | 3000 | |
| free lift height | mm | 145 | 150 | 150 | |
| Fork size | mm | 1070×125×45 | 1070×125×50 | 1070×125×50 | |
| Mast inclination | deg | 6 before 12 | |||
| Front suspension | mm | 480 | 496 | 496 | |
| rear overhang | mm | 540 | 575 | 575 | |
| Dimensions | total length | mm | 3850 | 3900 | 3900 |
| total width | mm | 1240 | 1240 | 1240 | |
| The mast does not rise | mm | 2055 | 2170 | 2170 | |
| safety frame height | mm | 2130 | 2130 | 2130 | |
| Shelf (fork) height | mm | 1150 | 1150 | 1150 | |
| Minimum turning radius | mm | 2520 | 2540 | 2540 | |
| Ra minimum right angle stacking aisle width | mm | 4270 | 4306 | 4306 | |
| Maximum driving speed (full load/no load) | Km/h | 18.5/20 | 18.5/20 | 18.5/20 | |
| Maximum lifting speed (full load/no load) | mm/s | 485/505 | 380/400 | 360/380 | |
| Maximum gradeability (full load/no load) | % | 20 | 20 | 20 | |
| Self-respect | kg | 4270 | 4650 | 4900 | |
| tire | front wheel | 28×9-15-14PR | 28×9-15-14PR | 28×9-15-14PR | |
| rear wheel | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR | ||
| wheelbase | front wheel | mm | 1000 | 1000 | 1000 |
| rear wheel | mm | 980 | 980 | 980 | |
| wheelbase | mm | 1760 | 1760 | 1760 | |
| Min. ground clearance | Door frame | mm | 130 | 130 | 130 |
| frame | mm | 160 | 160 | 160 | |
| fuel tank capacity | ltr | 60 | 60 | 60 | |
| engine parameters | Engine optional | ||||
| model | Yunnei YN27NAG4 | ||||
| rated power | kW/r | 36.8/2500 | 36.8/2500 | 36.8/2500 | |
| Rated torque | N·m/r | 180/1500～1900 | 180/1500～1900 | 180/1500～1900 | |
| Number of cylinders | 4 | 4 | 4 | ||
| Displacement | L | 2.67 | 2.67 | 2.67 | |
Rated Loading Capacity :800-2000kg
Fuel Capacity：600-3000 kg/h
Rated power: 40hp-200hp
Operating Weight: 1T-26T
