Application: highway restoration, airport reconstruction, etc.
Output: 64-160 tons/hour
Power: 148.8-280kW
Fuel: 6-8 kg/ton
Customized Asphalt Mixing Plant
The design layout of the batching plant will be customised and built according to your engineering volume and equipment needs. Let's expect all the miracles to happen.
Inquire now for the latest quote!
Describe
Asphalt Thermal Regeneration
The regeneration technology of the old asphalt of asphalt thermal recycling concrete pavement is to re-mix the old asphalt pavement with rejuvenating agent, new asphalt material, new aggregate, etc. Certain road function. This technology can save a lot of raw materials such as asphalt, sand and gravel, and at the same time is conducive to the disposal of waste and the protection of the environment.
Parameters
| MODEL | RAP800 | RAP1000 | RAP1500 | RAP2000 | |
| OUTPUT | 64t/h | 80t/h | 120t/h | 160t/h | |
| MEASUREMENT ACCURACY | STATIC | ±0.5% | |||
| DYNAMIC | ±2.5% | ||||
| FUEL CONSUMPTION | fuel：6-8kg/t | ||||
| TOTAL POWER | 148.8kW | 160kW | 259kW | 280kW | |
| MAX.PROPORTION OF RECYCLED MATERIAL AND SUPPORTING ORIGINAL MIXING PLANT | 1000type | 53% | —– | —– | —– |
| 1500type | 40% | 66.7% | —– | —– | |
| 2000type | —– | 50% | 75% | —– | |
| 3000type | 33% | 50% | 67% | ||
| 4000type | —– | —– | 37.5% | 50% | |
| 5000type | —– | —– | —– | 40% |
Structure
First, heat and soften the original asphalt thermally regenerated pavement to facilitate raking, and then fully stir the raked asphalt surface, and then carry out paving and rolling.
On-site thermal regeneration can be subdivided into three types according to the techniques used, namely, raking and shaping regeneration, resurfacing regeneration and remixing regeneration.

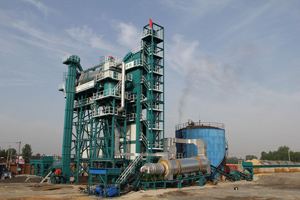

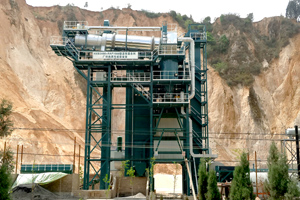

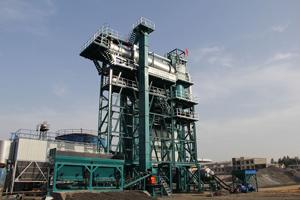

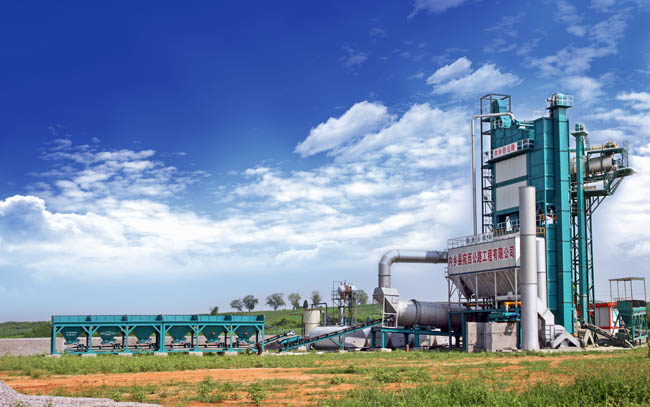

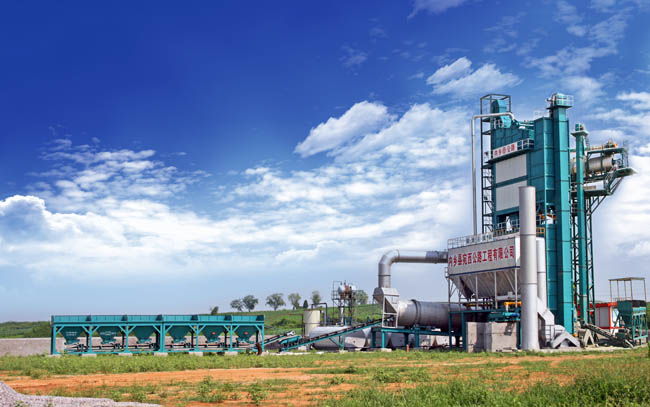

Equipment Photo
Address: Philippine
Type:Filter
Capacity：160 t/h - 320t/h
Type:Drying drum
Capacity:10-44kW
