Product Details

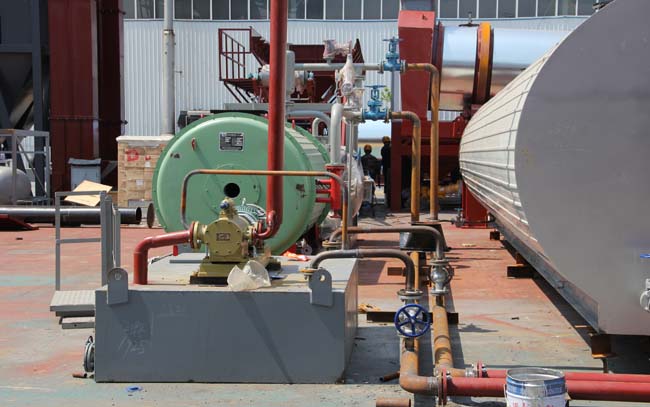

It adopts a horizontal boiler with oil-fired gas-fired organic heat carrier , and the boiler body is composed of inner and outer coils and a shell.
It not only ensures a certain heat exchange effect, but also makes the flue gas resistance lower than the pressure provided by the burner, to make sure stable and reliable combustion.
At the same time, it is designed with hinged openable front cover, sight glass and explosion-proof door, which is convenient for overhaul and internal maintenance of machine.
High-performance thermal insulation design saves energy, and all pipelines are insulated by thermal oil in the whole process, which is perfectly matched with asphalt tanks.
Thermal oil heating system parameters
| ASPHALT PLANT MODEL TO MATCH |
1000/1200 |
1500/2000 |
2500/3000 |
4000 |
| RATED THERMAL POWER |
350kW |
600kW |
900kW |
1500kW |
| HEAT SUPPLY |
30×104kcal/h |
50×104kcal/h |
75×104kcal/h |
130×104kcal/h |
| THERMAL EFFICIENCY |
92% |
92% |
92% |
92% |
| DESIGNED PRESSURE |
1.1MPa |
1.1MPa |
1.1MPa |
1.1MPa |
| MAX.OPERATING TEMPERATURE |
320℃ |
320℃ |
320℃ |
320℃ |
| OIL FLOW RATE |
32m³/h |
58m³/h |
100m³/h |
100m³/h |
| TANK VOLUME |
0.3m³ |
0.6m³ |
0.7m³ |
0.95m³ |
| TUBE DIAMETER |
80DN |
100DN |
125DN |
125DN |
| INSTALLED CAPACITY |
10kW |
15kW |
28kW |
44kW |
| APPLICABLE FUEL |
Oil, gas |
| FUEL CONSUMPTION |
42Nm³/h |
72Nm³/h |
108Nm³/h |
181Nm³/h |
| MAX. SHIPPING SIZE |
LENGTH |
3.1m |
3.5m |
3.9 m |
5.1 m |
| WIDTH |
1.7 m |
2.0 m |
2.2 m |
2.4 m |
| HIGH |
1.6 m |
1.9 m |
2.1 m |
2.4 m |
