Rated Loading Capacity (kg):800-2000
Capacity of standard dipper (m³) ：0.4-0.6
Discharging height(mm) ：2750-3500
It is widely used for highway, railway, construction, hydro-power, port and wet concrete batching plant.

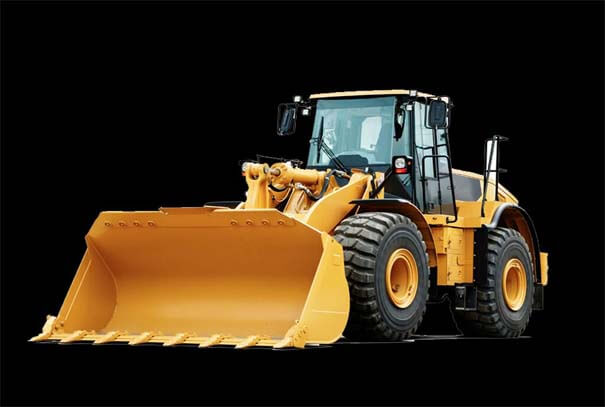

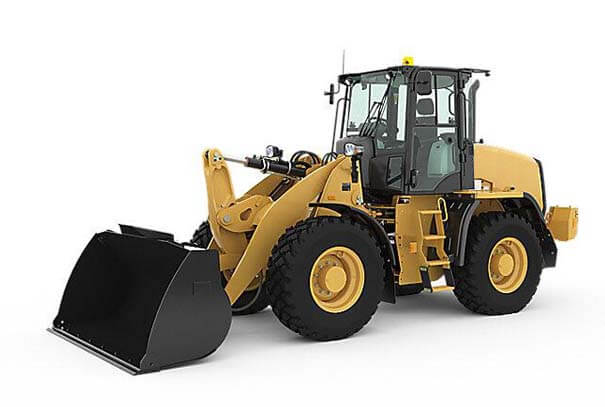

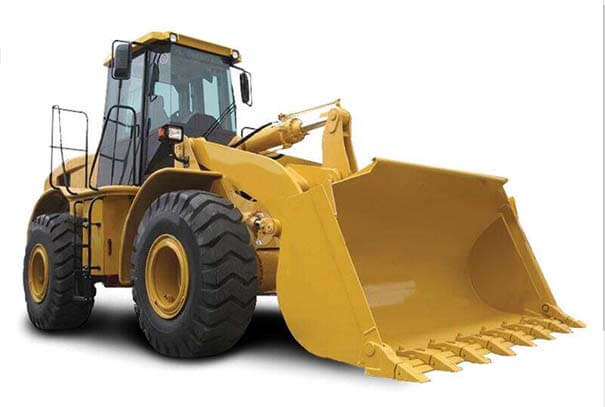

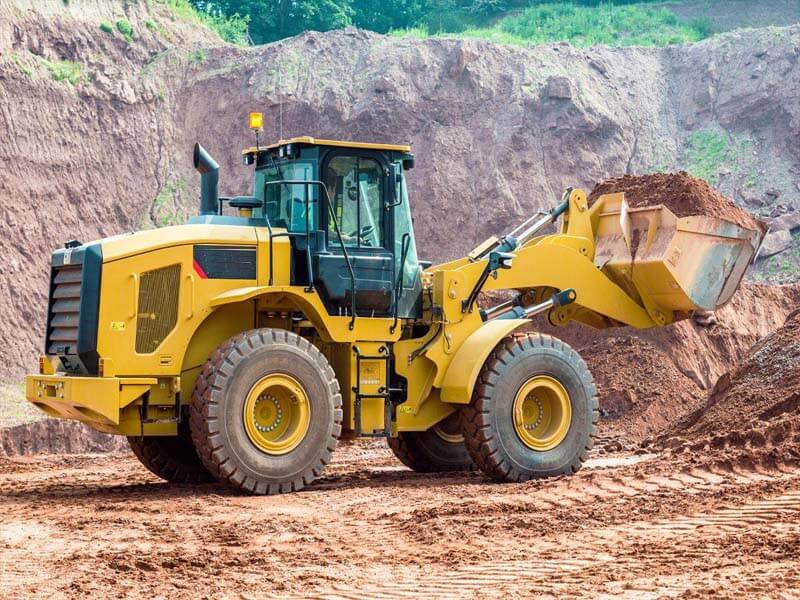

Chinese Manufacturer--Wheel Loaders and Front End Loaders
Product Introduction

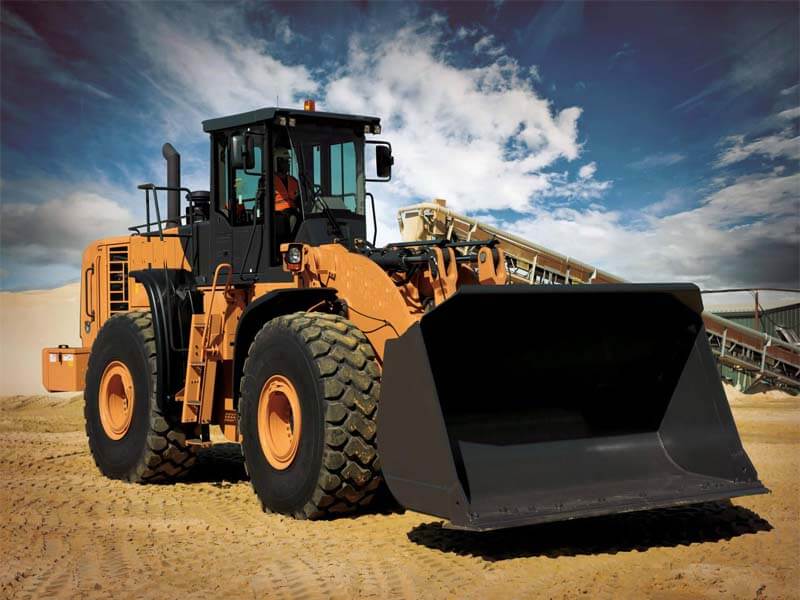

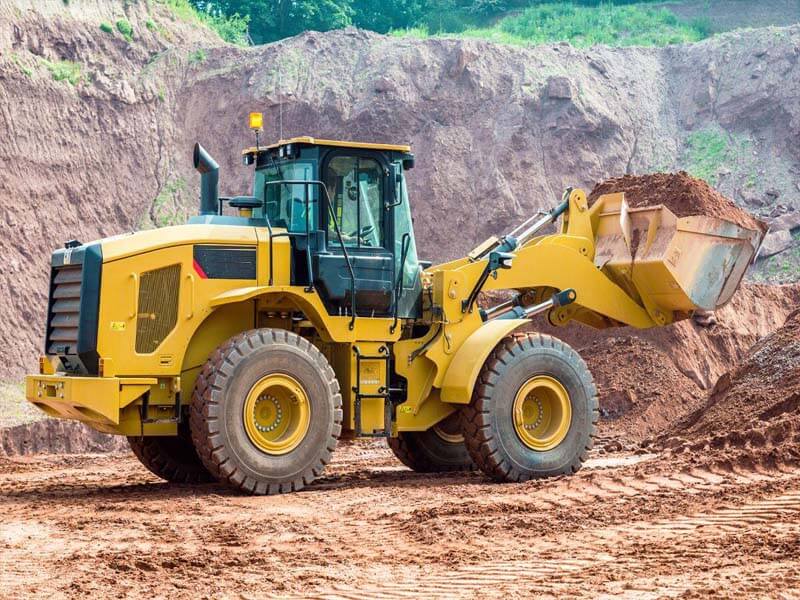

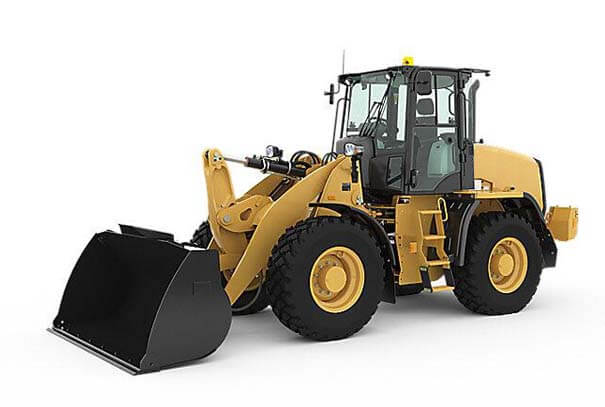

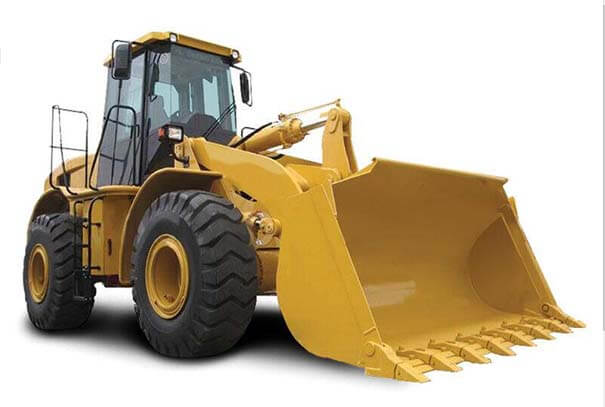

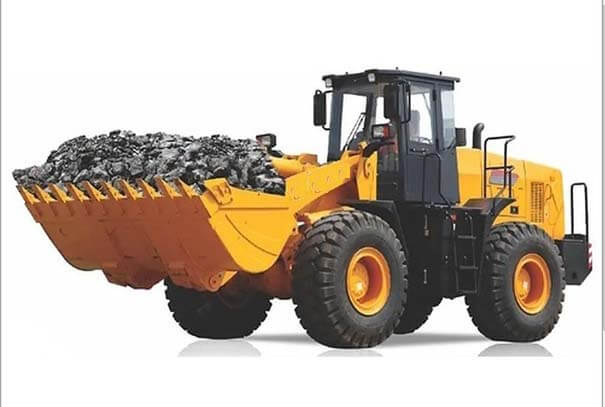

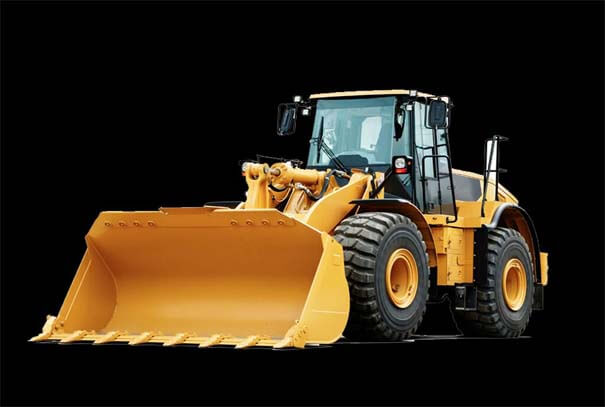

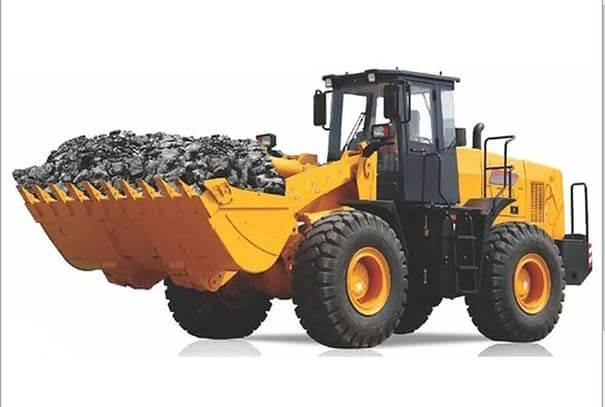

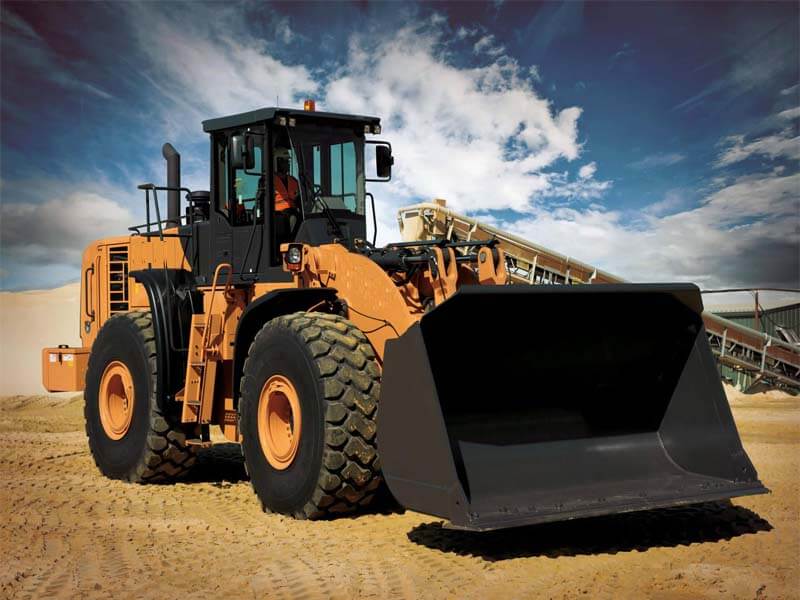

Wheel loader is an important construction machinery and effective helper in construction projects for users. According to the different walking devices, wheel loaders are divided into two types: tire wheel loader and crawler wheel loader. We Yalong Machinary Group wheel loader belongs to a tire wheel loader, which consists of power plant, frame, travel device, transmission system, steering system, braking system, hydraulic system, working devices and other components. Our wheel loaders have occupied the leading position in similar products in China because of our wheel loader has light weight, compact and reasonable design, high flexibility and stability and simple operation.
Technical Parameters
| Item | Type | ||||||
| ZL-08 | ZL-10 | ZL-12 | ZL-15 | ZL-16 | ZL-18 | ZL-20 | |
| Rated Loading Capacity (kg) | 800 | 1000 | 1200 | 1500 | 1600 | 1800 | 2000 |
| Capacity of standard dipper (m³) | 0.4 | 0.4 | 0.45 | 0.45 | 0.55 | 0.6 | 0.65 |
| Engine type | L24A | L28 | 2102/485 | 490 | 4100/4102 | 4100/4102 | 4102/4105 |
| Rated Power (kw) | 17 | 20 | 26 | 30 | 40/47 | 40/47 | 47/54 |
| Discharging height(mm) | 2750 | 2750 | 2750/2850 | 2900 | 3200 | 3500 | 3500 |
| Overall dimension (L×W×H) (mm) | 4400×1620×2300 | 4400×1620×2300 | 4800×1620×2500 | 4800×1620×2500 | 4800×1700×2700 | 4800×1700×2700 | 600×1950×2900 |
| Transmission | Mechanical | Mechanical | Mechanical | Mechanical/ | Mechanical/ | Mechanical/ | echanical/ |
| type | Arber fixe | Arber fixe | Arber fixe | Arber fixe | |||
| Tire | 7.50-16 | 8.25-16 | 1200-16 | 1200-16 | 16/90-16 | 16/70-16 | |
